TECHNICAL SPECIFICATIONS

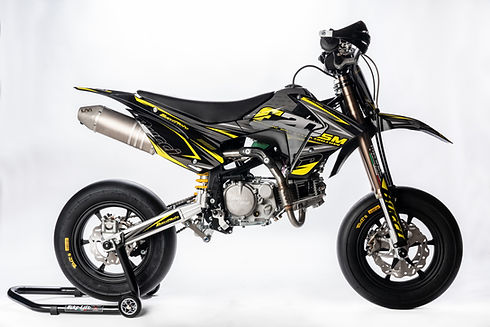

F20SM 2020 - From £3949.99



BUCCI MOTO is an Italian manufacture known worldwide for being the leading brand of high quality made machines in the Mini Bike racing market.



Here at Parker Racing we are the UK Import & Distributer for BUCCI MOTO.



We have 2 types of pricing which is shown in photos attached:



Italian Spec = Bikes built in the Italian factory to the engine specs shown.

UK Spec = Bikes are assembled in the Italian factory and engines are installed by us at Parker Racing as we can tailor more to the UK market demand.



Below is the general specifications for the motorcycle which may will vary depending on package chosen:


Frame:

New high-resistance frame and subframe with motor support box and linkage. - MADE IN ITALY.

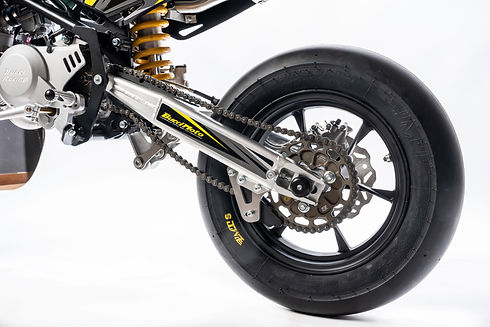

Swing arm:

7020 extruded aluminum with new exclusive design Bucci - MADE IN ITALY



Linkage:

CNC alluminium linkage 7020 with stainless steel connecting rods and roller cages. - MADE IN

ITALY



Front fork

UPSD Tech Suspension 39mm diameter with new setting with compression  and anodizing silver –

MADE IN ITALY

720mm length with CNC  front fork legs for double brake disk



Triple clamp:

New design with 170mm wheelbase - MADE IN ITALY



Rear shock Motard

MUPO with white spring and CNC body with variable wheelbase

Stem 16mm chromed piston with 46 adjustments Compression & Rebound.

Bearing in the upper part and fork in the lower part - MADE IN ITALY



Fuel tank

New Bucci tank with retractable cap - MADE IN ITALY



Carburator

Diameter  28 copy Taiwan (PE 28 original Keihin on Daytona  Anima 150cc-190cc)



Air filter

Sponge air filter  DT1



Ignition

Digital lightweight flywheel system fitted.

Transmission

Chain DID 420 B&B



Final transmission

Lightweight 3 stud aluminium sprocket fitted.



Chain guide

New chain guide - MADE IN ITALY



Lubrification

Oil filter inside crankcase



Oil radiator

In aluminium



Clutch

5 Plate wet clutch system – (6 Plate Daytona)

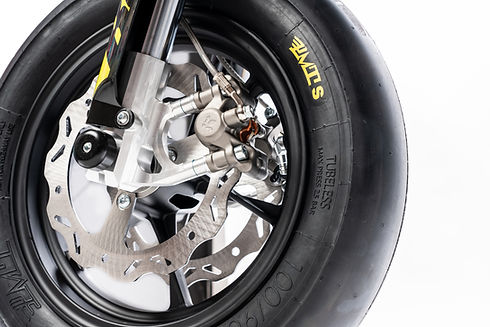

Front brake Motard

New Twin Formula radial with 2 callipers with 2 pistons - MADE IN ITALY

With fixed brake disk, diameter 200mm - MADE IN ITALY



Rear brake

Formula radial with brake disk  diameter 180mm - MADE IN ITALY

Front wheel Motard

Aluminium tubeless 12x2,50



Rear wheel Motard

Aluminium tubeless 12x3,00



Tyres Motard

100/90-12 front 120/80-12 rear  PMT Brand - MADE IN ITALY

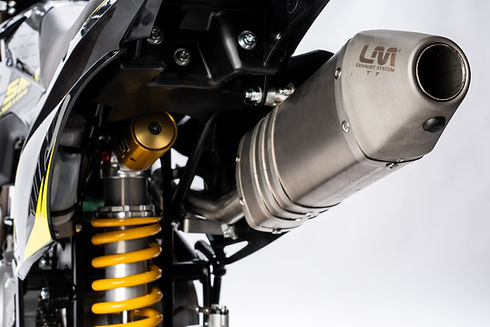

Exhaust system

LM in aluminium with new design and carbon cup - MADE IN ITALY


Handlebar

Alluminium black PBR lower with Neken pad  diameter 28mm



Throttle

Domino - MADE IN ITALY



Seat height

Motard = 81cm



Wheel base

Motard = 1190mm



Colour

Black,white,red



Engine available



YX 150cc-YX 160cc-Tokawa 160cc



Daytona Anima 150cc-Daytona Anima 190cc-



Paddock Stand:

Rear Paddock Stand Included

Optional Extras Available:

Slipper Clutch’s – From £400.00

Floating front brake disks – From £80.00

Florescent Frame Paint - £100.00

Quick Shifter - TBA

Choice of race shift or road shift – Free Option

Front Paddock Stand - £65.00
